Pre-treatment integrated DTG machine for 40cm wide cotton garments
Save labor and space

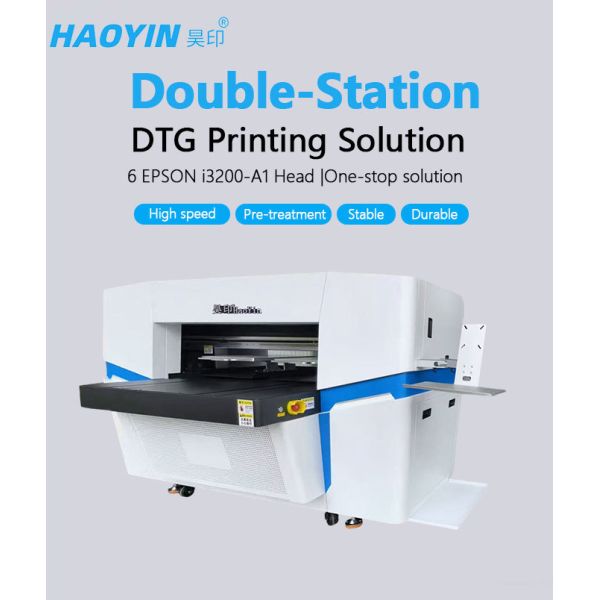

We bring you this double-station DTG printer. With six Epson I3200 print heads, it supports nine colors (CMYK+ORGB+white ink) for a wide color gamut. The double-station design boosts production efficiency. Future expansion to eight heads is supported, and the moisturizing system gives full head protection, raising efficiency and extending lifespan. A detachable platen adapts to various fabric printing needs. It achieves 80 A4-sized patterns per hour, occupies little space, is straightforward to operate, and cuts labor costs—making it a great fit for custom and low-volume clothing producers.
Equipment with excellent printing efficiency
Take a look at this double-station DTG printer. It features six Epson I3200 print heads and nine-color printing (CMYK+ORGB+white ink) for a wide color gamut. The double-station design boosts production efficiency significantly. Future expansion to eight heads is supported, and the head moisturizing system provides full protection, improving efficiency and extending lifespan. A removable platen flexibly handles various fabric printing needs. It achieves 80 A4-sized patterns per hour, occupies little space, is simple to operate, and cuts labor costs—perfect for custom and small-run clothing merchants.
Easy to operate
We bring you this double-station DTG printer. With six Epson I3200 print heads, it supports nine colors (CMYK+ORGB+white ink) for a wide color gamut. The double-station design boosts production efficiency. Future expansion to eight heads is supported, and the moisturizing system gives full head protection, raising efficiency and extending lifespan. A detachable platen adapts to various fabric printing needs. It achieves 80 A4-sized patterns per hour, occupies little space, is straightforward to operate, and cuts labor costs—making it a great fit for custom and low-volume clothing producers.
DTG Printer Specifications
| Printer Model |
KY5060 |
| Print head |
EPSON 3200-A1*6 |
| Print width |
≤40cm |
| Print color |
CMYKORGB+White |
| RIP software |
MainTop/RF/RIIN |
| Printing accuracy |
720*1800 dpi |
| Recommended speed |
30Pcs/A3 |
| Electrical parameters |
220V/600ma/50/60HZ |
| Printing media |
Pure cotton and fabrics containing cotton |
| Operating system |
Windows 10 and above |
| Work Environment |
Temperature 10 - 35℃, Humidity 30-80% |
| Machine size |
4100*1800*1500mm 900KG |
| Factory configuration |
standard Tabletop:40cm*50cm maximum Tabletop:50cm*70cm |
| Scope of application |
Widely used industries such as clothing,luggage,canvas shoes,hats,underwear,and both bowels |
Product Features
Dual-Station DTG printer
01 Epson i3200-A1 Printhead
This machine has 6 Epson i3200-A1 printheads (2 each for pretreatment, white ink, and color ink). It's easy to use, highly efficient, and requires no manual pretreatment—just print in one go. Speed: 80–120 A4 pieces per hour. With 600 dpi per color and up to 4 colors per printhead, it delivers sharp details, smooth transitions, and vivid colors. The printheads are durable and low-maintenance.
02 Compact Size & Easy Operation
It has a small size and takes up little space. It is easy to use: you just need a design to print, and basic computer skills to run the machine.
03 Epson i3200-A1 Printhead
60×90cm max print size. Supports various print areas. Standard: two 40×50cm stations. Custom sizes on request.
04 Premium Domestic Mainboard
Domestic high-quality mainboard ensures stable operation, high print precision, and excellent color output.
05 Pro Color Software
Imported RIP software offers user-friendly color management — freely adjust ink, remove backgrounds with one click, and arrange layouts easily. Delivers high color accuracy, smooth transitions, and strong 3D effects.
06 9-Color Ink Cartridges for Vivid Prints
With 9-color ink cartridges, you can choose from two color configurations:
07 Printhead Protection System
The printhead protection system helps the printhead last longer by giving it:
• Auto-circulation for white ink
• Anti-crash protection
• Humidification
08 Imported Linear Guides
Japanese imported THK/Hiwin guides, steel beam, and dual servo motors ensure jam-free, high-speed, high-precision printing. Consistent accuracy even after years of use.
